Description
High-efficiency, openable progress-capture pulley

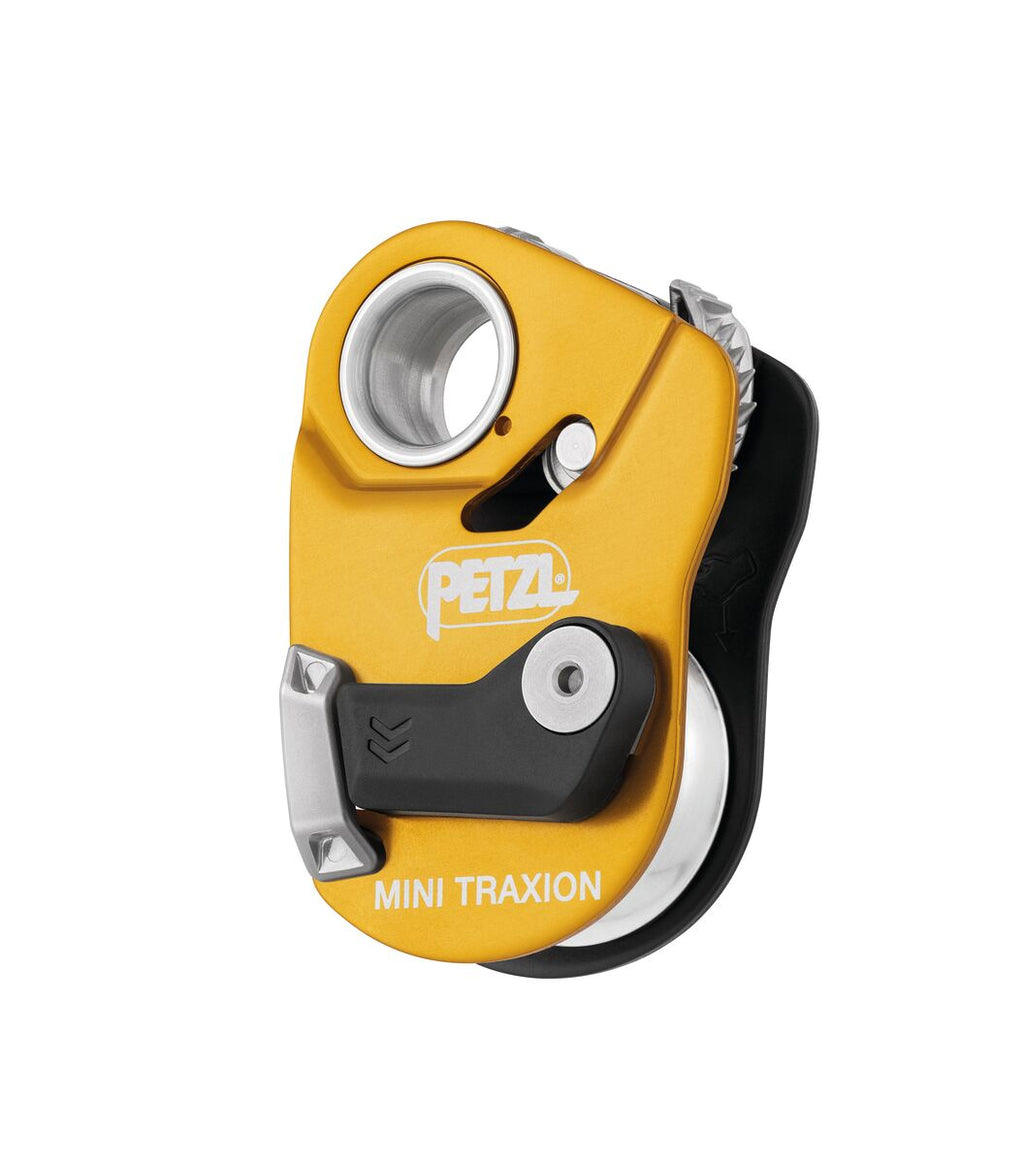

Designed for hauling and rescue, MINI TRAXION is an openable progress-capture pulley that allows the rope to be installed while the pulley is connected to the anchor. The large-diameter sheave mounted on sealed ball bearings provides excellent efficiency (93 %). The cam can be locked in the open position so the device can be used as a simple pulley.
Description
- High-efficiency progress-capture pulley designed for hauling and rescue:
- Large diameter aluminum sheave mounted on sealed ball bearings for excellent efficiency (93 %), even when hauling heavy loads
- Toothed cam with self-cleaning slot optimizes performance under a variety of conditions, such as when the ropes are frozen or dirty
- For use on 7 to 11 mm diameter ropes - Simple to use:
- Openable side plate allows the rope to be easily installed while the pulley is connected to the anchor, limiting the risk of dropping it
- Triple-action opening of the moving side plate is quick and easy, even with gloves
- May be used as a simple pulley by locking the cam in the raised position
- Compact and lightweight (150 g) - Durable:
- Special side plate design protects the rope path
- Stainless steel toothed cam for optimal durability
Specifications
- Weight: 150 g

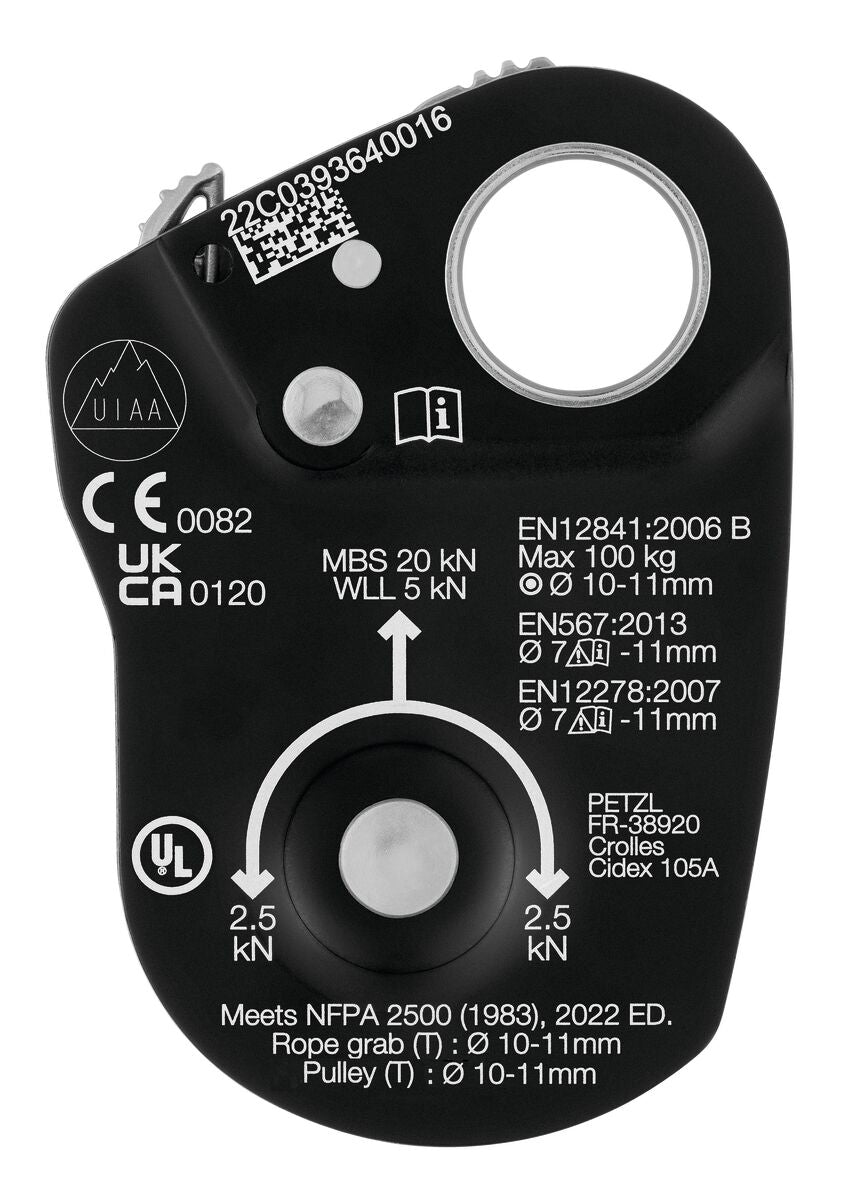

- Certification(s): CE EN 567, CE EN 12278, CE EN 12841 type B, NFPA 2500 Technical Use Pulley and Rope grab, XF 494: FZL-Z-Q 8.5/11, XF 494: FZL-H-Q 8.5/11
- Material(s): Aluminum, stainless steel, nylon
- Min. rope diameter: 7 mm
- Max. rope diameter: 11 mm
- Sheave type: Sealed ball bearings
- Sheave diameter: 32 mm
- Working load: 2 x 2.5 = 5 kN
- Breaking strength: 2 x 10 = 20 kN
- Working load as progress capture pulley: 2,5 kN
- Breaking strength as progress capture pulley: 4 kN
- Efficiency: 93 %
- Compatible with the RAD LINE 6 mm cord
- Compatible with the PUR’LINE 6 mm cord only for hauling a pack
